Report of Marine Survey 2024 Of The Vessel A

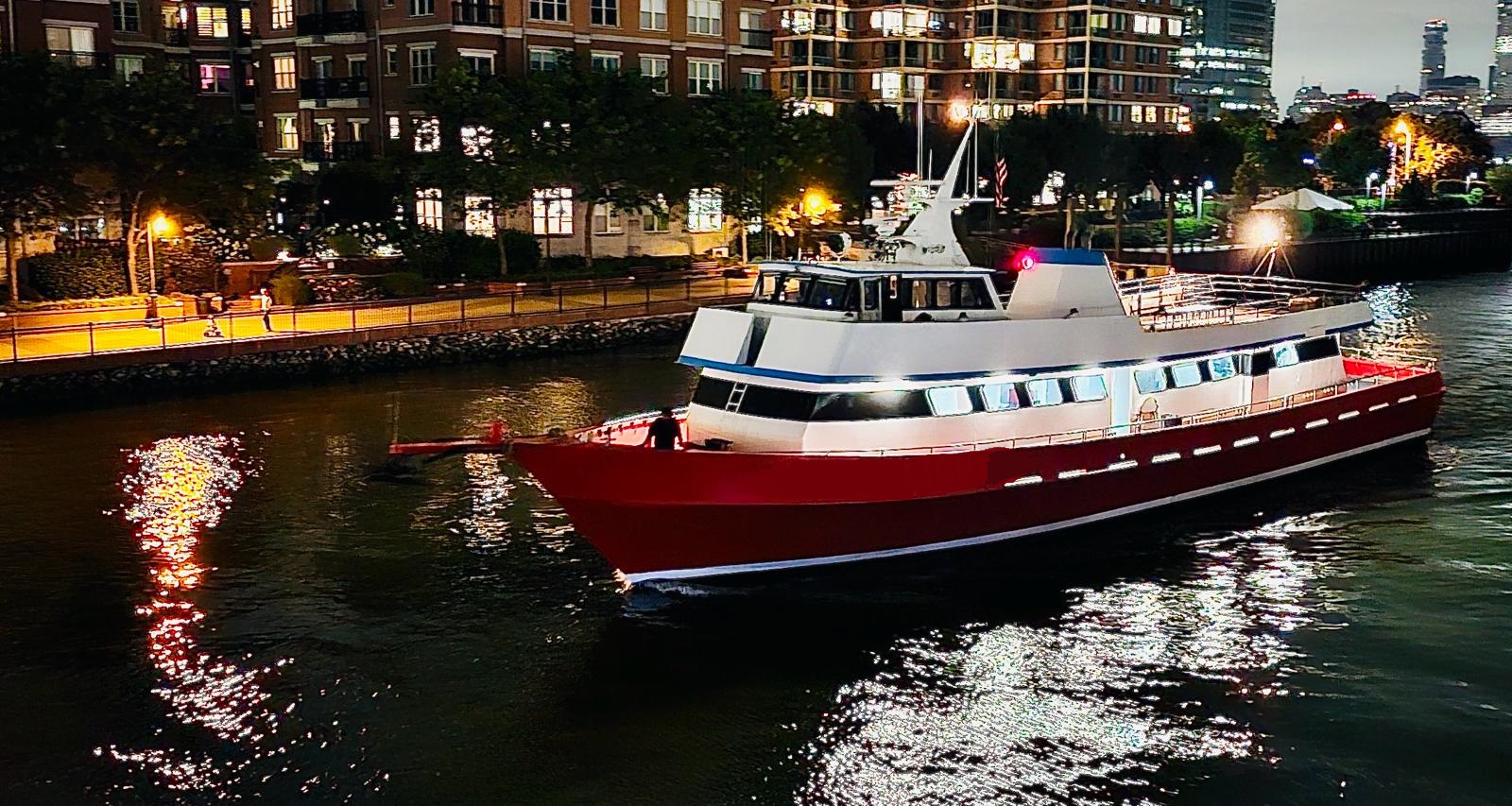

1985 PASSENGER SIGHTSEEING VESSEL
BUILT IN 1985 (L.O.A).: 115′ X REGISTERED BEAM: 24.4′ DRAFT: 6′ DEPTH: 7′.3
A steel party excursion vessel built and launched in Jamestown RI. Vessel sub
assemblies and scantlings were built in Stonington, CT and transported to assembly yard. Superstructure was completed in Groton, CT. Construction features web framing and watertight bulkheads and steel shell plate.
Vessel is powered by a pair of 600 HP diesel engines paired to Twin Disc transmissions.
Main deck features spacious deck house with tables and seating, there are large side decks with benches and large aft deck and head compartments. A ladder-way aft leads to 01 deck and wheelhouse. There are a pair of Detroit Diesel 20 KW diesel gen-sets and full gall
DISPLACEMENT (WEIGHT): 295,000.00 lbs GROSS/NET TONS: 81/55
PROPULSION SYSTEM: Twin 500 HP diesel engines.
FUEL TYPE: DIESEL CAPACITY: 3000 gallons
AC POWER: 120 volt single phase.
AUTOPILOT:Simrad Robertson AP22, GYRO:
KVH GyroTrac for ship’s heading, SS TEMP:
Dytek ST 500 sea surface temperature.
FISH FINDER: Furuno FCV-585,
COMPASS:Simrad digital compass and Ritchie power-damp with degassing balls, compass
NAVIGATION COMPUTER:
Lenovo PC and navigation software with Raster charts and flat-screen display.
RUDDER ANGLE INDICATOR:
Robertson R135 Mk 2 rudder angle indicator.
WIND: Davis weather wizard III,
54″ D X 57″ P Bronze Propellers
Bolt on hull anodes, recently renewed,
CONDITION OF BOTTOM PAINT: Bottom well painted-Condition good
